Arrays and Images
Provided code is to assist in changing Images.
import javax.imageio.ImageIO;
import java.io.File;
import java.io.IOException;
import java.awt.image.BufferedImage;
public class ImageIOTest {
public static void main( String[] args ){
BufferedImage img = null; // buffer type
try {
// Name of file and directories
String name = "MonaLisa";
String in = "images/";
String out = "images/tmp/";
// Either use URL or File for reading image using ImageIO
File imageFile = new File(in + name + ".png");
img = ImageIO.read(imageFile); // set buffer of image data
// ImageIO Image write to gif in Java
// Documentation https://docs.oracle.com/javase/tutorial/2d/images/index.html
ImageIO.write(img, "gif", new File(out + name + ".gif") ); // write buffer to gif
} catch (IOException e) {
e.printStackTrace();
}
System.out.println("Success");
}
}
ImageIOTest.main(null);
Image Scaling and ASCII Conversion
In this example we print out a row of text for each row in the image. However, it seems as if the image is too tall. To address this problem, try to output a single character per block of pixels. In particular, average the grayscale values in a rectangular block that’s twice as tall as it is wide, and print out a single character for this block.
import java.awt.Color;
import java.awt.image.BufferedImage;
import java.awt.Image;
import java.awt.Graphics2D;
import java.io.File;
import java.io.FileWriter;
import java.io.IOException;
import java.io.PrintWriter;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import javax.imageio.stream.ImageOutputStream;
import javax.imageio.stream.ImageInputStream;
import javax.imageio.metadata.IIOMetadata;
import javax.imageio.IIOImage;
import javax.imageio.ImageIO;
import javax.imageio.ImageWriteParam;
import javax.imageio.ImageWriter;
import javax.imageio.ImageReader;
import javax.imageio.ImageTypeSpecifier;
public class Pics {
private final String inDir = "images/"; // location of images
private final String outDir = "images/tmp/"; // location of created files
private String inFile;
private String resizedFile;
private String asciiFile;
private String ext; // extension of file
private long bytes;
private int width;
private int height;
// Constructor obtains attributes of picture
public Pics(String name, String ext) {
this.ext = ext;
this.inFile = this.inDir + name + "." + ext;
this.resizedFile = this.outDir + name + "." + ext;
this.asciiFile = this.outDir + name + ".txt";
this.setStats();
}
// An image contains metadata, namely size, width, and height
public void setStats() {
BufferedImage img;
try {
Path path = Paths.get(this.inFile);
this.bytes = Files.size(path);
img = ImageIO.read(new File(this.inFile));
this.width = img.getWidth();
this.height = img.getHeight();
} catch (IOException e) {
}
}
// Console print of data
public void printStats(String msg) {
System.out.println(msg + ": " + this.bytes + " " + this.width + "x" + this.height + " " + this.inFile);
}
// Convert scaled image into buffered image
public static BufferedImage convertToBufferedImage(Image img) {
// Create a buffered image with transparency
BufferedImage bi = new BufferedImage(
img.getWidth(null), img.getHeight(null),
BufferedImage.TYPE_INT_ARGB);
// magic?
Graphics2D graphics2D = bi.createGraphics();
graphics2D.drawImage(img, 0, 0, null);
graphics2D.dispose();
return bi;
}
// Scale or reduce to "scale" percentage provided
public void resize(int scale) {
BufferedImage img = null;
Image resizedImg = null;
int width = (int) (this.width * (scale/100.0) + 0.5);
int height = (int) (this.height * (scale/100.0) + 0.5);
try {
// read an image to BufferedImage for processing
img = ImageIO.read(new File(this.inFile)); // set buffer of image data
// create a new BufferedImage for drawing
resizedImg = img.getScaledInstance(width, height, Image.SCALE_SMOOTH);
} catch (IOException e) {
return;
}
try {
ImageIO.write(convertToBufferedImage(resizedImg), this.ext, new File(resizedFile));
} catch (IOException e) {
return;
}
this.inFile = this.resizedFile; // use scaled file vs original file in Class
this.setStats();
}
// convert every pixel to an ascii character (ratio does not seem correct)
public void convertToAscii() {
BufferedImage img = null;
PrintWriter asciiPrt = null;
FileWriter asciiWrt = null;
try {
File file = new File(this.asciiFile);
Files.deleteIfExists(file.toPath());
} catch (IOException e) {
System.out.println("Delete File error: " + e);
}
try {
asciiPrt = new PrintWriter(asciiWrt = new FileWriter(this.asciiFile, true));
} catch (IOException e) {
System.out.println("ASCII out file create error: " + e);
}
try {
img = ImageIO.read(new File(this.inFile));
} catch (IOException e) {
}
for (int i = 0; i < img.getHeight(); i++) {
for (int j = 0; j < img.getWidth(); j++) {
Color col = new Color(img.getRGB(j, i));
double pixVal = (((col.getRed() * 0.30) + (col.getBlue() * 0.59) + (col
.getGreen() * 0.11)));
try {
asciiPrt.print(asciiChar(pixVal));
asciiPrt.flush();
asciiWrt.flush();
} catch (Exception ex) {
}
}
try {
asciiPrt.println("");
asciiPrt.flush();
asciiWrt.flush();
} catch (Exception ex) {
}
}
}
// conversion table, there may be better out there ie https://www.billmongan.com/Ursinus-CS173-Fall2020/Labs/ASCIIArt
public String asciiChar(double g) {
String str = " ";
if (g >= 240) {
str = " ";
} else if (g >= 210) {
str = ".";
} else if (g >= 190) {
str = "*";
} else if (g >= 170) {
str = "+";
} else if (g >= 120) {
str = "^";
} else if (g >= 110) {
str = "&";
} else if (g >= 80) {
str = "8";
} else if (g >= 60) {
str = "#";
} else {
str = "@";
}
return str;
}
// tester/driver
public static void main(String[] args) throws IOException {
Pics monaLisa = new Pics("MonaLisa", "png");
monaLisa.printStats("Original");
monaLisa.resize(33);
monaLisa.printStats("Scaled");
monaLisa.convertToAscii();
Pics pumpkin = new Pics("pumpkin", "png");
pumpkin.printStats("Original");
pumpkin.resize(33);
pumpkin.printStats("Scaled");
pumpkin.convertToAscii();
}
}
Pics.main(null);
Hacks
Continue to work with Classes, Arrays, and 2D arrays. FYI, you may need to make a directory /tmp under notebook images.
- Look at comments above and see if there is better conversions for ASCII to reduce elongation and distortion.
- Try to convert images into Grey Scale, Red Scale, Blue Scale, and Green Scale.
Personal Hacks
For these hacks, I'll be making the red-scale, green-scale, blue-scale, and gray-scale conversions first, and then I'll fix the compression issue.
I also decided to use an abstract class just for some extra efficiency and practice with it.
Just for reference, I'll be using this photo:
Template
It's annoying to have to write the same code to construct each image and get their properties, so I just decided to write that all here.
Some of the code is copied from above; I took the constructor, setStats(), and resize(). Those functions are pretty optimized already, so trying to remake them is pointless. What I do need to optimize with completelly new code is the color scaling and ASCII conversions, which will be later.
import java.awt.Color;
import java.awt.image.BufferedImage;
import java.awt.Image;
import java.awt.Graphics2D;
import java.io.File;
import java.io.FileWriter;
import java.io.IOException;
import java.io.PrintWriter;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import javax.imageio.stream.ImageOutputStream;
import javax.imageio.stream.ImageInputStream;
import javax.imageio.metadata.IIOMetadata;
import javax.imageio.IIOImage;
import javax.imageio.ImageIO;
import javax.imageio.ImageWriteParam;
import javax.imageio.ImageWriter;
import javax.imageio.ImageReader;
import javax.imageio.ImageTypeSpecifier;
abstract class ImageBlueprint {
protected final String inDir = "images/"; // location of images
protected final String outDir = "images/tmp/"; // location of created files
protected String inFile;
protected String resizedFile;
protected String colorFile;
protected String ext; // extension of file
protected long bytes;
protected int width;
protected int height;
// get attributes of picture
public ImageBlueprint(String name, String ext) {
this.ext = ext;
this.inFile = this.inDir + name + "." + ext;
this.resizedFile = this.outDir + name + "." + ext;
this.colorFile = this.outDir + name + "New" + ".png";
this.setStats();
}
public ImageBlueprint(String image) {
this(image, "png");
}
// An image contains metadata, namely size, width, and height
public void setStats() {
BufferedImage img;
try {
Path path = Paths.get(this.inFile);
this.bytes = Files.size(path);
img = ImageIO.read(new File(this.inFile));
this.width = img.getWidth();
this.height = img.getHeight();
} catch (IOException e) {
}
}
// Scale or reduce to "scale" percentage provided
public void resize(int scale) {
BufferedImage img = null;
Image resizedImg = null;
int width = (int) (this.width * (scale/100.0) + 0.5);
int height = (int) (this.height * (scale/100.0) + 0.5);
try {
// read an image to BufferedImage for processing
img = ImageIO.read(new File(this.inFile)); // set buffer of image data
// create a new BufferedImage for drawing
resizedImg = img.getScaledInstance(width, height, Image.SCALE_SMOOTH);
} catch (IOException e) {
return;
}
//ImageIO.write(convertToBufferedImage(resizedImg), this.ext, new File(resizedFile));
this.inFile = this.resizedFile; // use scaled file vs original file in Class
this.setStats();
}
// Will be used later
protected abstract void conversion();
}
Seeing Red... Green... Blue... and Gray
Now that I've written the template, it's actually pretty easy to scale everything to a certain color.
For the primary colors, all that's needed is to set the values of the non scaled color to be 00 (for example red-scaling would have green and blue be set to 00).
Gray-scaling is a bit more complicated. There are multiple methods that, in theory, should work. According to one website I found, there are two methods: average or weighted. Average is as simple as it seems - just take the average of all three values:
Grayscale = (R + G + B) / 3
However, due to the way that humans perceive light (with different sensitivities for different colors), this isn't the most accurate. This leads to the weighted method, based on the way humans actually weigh different colors of light in their vision:> Grayscale = 0.299R + 0.587G + 0.114B I got the information on grayscaling from here, so click that link to learn more about it.
Since the weighted method is more efficient, that's what I'll be using here. Actually implementing it was pretty difficult though. Instead of using the numeric RGB values, I had to calculate the luminance in order to make everything work.
public class RedConversion extends ImageBlueprint {
public RedConversion(String name, String ext) {
super(name, ext);
this.colorFile = this.outDir + name + "Red" + ".png";
}
public RedConversion(String name) {
super(name);
this.colorFile = this.outDir + name + "Red" + ".png";
}
@Override
protected void conversion() {
BufferedImage img = null;
PrintWriter colorPrt = null;
FileWriter colorWrt = null;
// Just deletes file if already exists in tmp
try {
File file = new File(this.colorFile);
Files.deleteIfExists(file.toPath());
} catch (IOException e) {
System.out.println("Delete File error: " + e);
}
// try {
// colorPrt = new PrintWriter(colorWrt = new FileWriter(this.colorFile, true));
// } catch (IOException e) {
// // TODO Auto-generated catch block
// e.printStackTrace();
// }
try {
img = ImageIO.read(new File(this.inFile));
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
for (int i = 0; i < this.height; i++) {
for (int j = 0; j < this.width; j++) {
Color col = new Color(img.getRGB(j, i));
int rgb = new Color(col.getRed(), 0, 0).getRGB();
img.setRGB(j, i, rgb);
}
}
//System.out.println("for loop done");
try {
ImageIO.write(img, "png", new File(this.colorFile) );
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
public static void main(String[] args) {
RedConversion nicandrohan = new RedConversion("nicandrohan", "png");
nicandrohan.conversion();
}
}
public class GreenConversion extends ImageBlueprint {
public GreenConversion(String name, String ext) {
super(name, ext);
this.colorFile = this.outDir + name + "Green" + ".png";
}
public GreenConversion(String name) {
super(name);
this.colorFile = this.outDir + name + "Green" + ".png";
}
@Override
protected void conversion() {
BufferedImage img = null;
PrintWriter colorPrt = null;
FileWriter colorWrt = null;
// Just deletes file if already exists in tmp
try {
File file = new File(this.colorFile);
Files.deleteIfExists(file.toPath());
} catch (IOException e) {
System.out.println("Delete File error: " + e);
}
// try {
// colorPrt = new PrintWriter(colorWrt = new FileWriter(this.colorFile, true));
// } catch (IOException e) {
// // TODO Auto-generated catch block
// e.printStackTrace();
// }
try {
img = ImageIO.read(new File(this.inFile));
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
for (int i = 0; i < this.height; i++) {
for (int j = 0; j < this.width; j++) {
Color col = new Color(img.getRGB(j, i));
int rgb = new Color(0, col.getGreen(), 0).getRGB();
img.setRGB(j, i, rgb);
}
}
// System.out.println("for loop done");
try {
ImageIO.write(img, "png", new File(this.colorFile) );
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
public static void main(String[] args) {
GreenConversion nicandrohan = new GreenConversion("nicandrohan", "png");
nicandrohan.conversion();
}
}
public class BlueConversion extends ImageBlueprint {
public BlueConversion(String name, String ext) {
super(name, ext);
this.colorFile = this.outDir + name + "Blue" + ".png";
}
public BlueConversion(String name) {
super(name);
this.colorFile = this.outDir + name + "Blue" + ".png";
}
@Override
protected void conversion() {
BufferedImage img = null;
PrintWriter colorPrt = null;
FileWriter colorWrt = null;
// Just deletes file if already exists in tmp
try {
File file = new File(this.colorFile);
Files.deleteIfExists(file.toPath());
} catch (IOException e) {
System.out.println("Delete File error: " + e);
}
// try {
// colorPrt = new PrintWriter(colorWrt = new FileWriter(this.colorFile, true));
// } catch (IOException e) {
// // TODO Auto-generated catch block
// e.printStackTrace();
// }
try {
img = ImageIO.read(new File(this.inFile));
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
for (int i = 0; i < this.height; i++) {
for (int j = 0; j < this.width; j++) {
Color col = new Color(img.getRGB(j, i));
int rgb = new Color(0, 0, col.getBlue()).getRGB();
img.setRGB(j, i, rgb);
}
}
// System.out.println("for loop done");
try {
ImageIO.write(img, "png", new File(this.colorFile) );
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
public static void main(String[] args) {
BlueConversion nicandrohan = new BlueConversion("nicandrohan", "png");
nicandrohan.conversion();
}
}
public class GrayConversion extends ImageBlueprint {
public GrayConversion(String name, String ext) {
super(name, ext);
this.colorFile = this.outDir + name + "Gray" + ".png";
}
public GrayConversion(String name) {
super(name);
this.colorFile = this.outDir + name + "Gray" + ".png";
}
@Override
protected void conversion() {
BufferedImage img = null;
PrintWriter colorPrt = null;
FileWriter colorWrt = null;
// Just deletes file if already exists in tmp
try {
File file = new File(this.colorFile);
Files.deleteIfExists(file.toPath());
} catch (IOException e) {
System.out.println("Delete File error: " + e);
}
// try {
// colorPrt = new PrintWriter(colorWrt = new FileWriter(this.colorFile, true));
// } catch (IOException e) {
// // TODO Auto-generated catch block
// e.printStackTrace();
// }
try {
img = ImageIO.read(new File(this.inFile));
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
for (int i = 0; i < this.height; i++) {
for (int j = 0; j < this.width; j++) {
//Color col = new Color(img.getRGB(j, i));
//int rgb = new Color((int)(0.299 * col.getRed()), (int)(0.114 * col.getGreen()), (int)(0.587 * col.getBlue())).getRGB();
int rgb = img.getRGB(j, i);
int r = (rgb >> 16) & 0xFF;
int g = (rgb >> 8) & 0xFF;
int b = (rgb & 0xFF);
// Normalize and gamma correct:
float rr = (float) Math.pow(r / 255.0, 2.2);
float gg = (float) Math.pow(g / 255.0, 2.2);
float bb = (float) Math.pow(b / 255.0, 2.2);
// Calculate luminance:
float lum = (float) (0.2126 * rr + 0.7152 * gg + 0.0722 * bb);
// Gamma compand and rescale to byte range:
int grayLevel = (int) (255.0 * Math.pow(lum, 1.0 / 2.2));
int gray = (grayLevel << 16) + (grayLevel << 8) + grayLevel;
img.setRGB(j, i, gray);
}
}
// System.out.println("for loop done");
try {
ImageIO.write(img, "png", new File(this.colorFile) );
} catch (IOException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
public static void main(String[] args) {
GrayConversion nicandrohan = new GrayConversion("nicandrohan", "png");
nicandrohan.conversion();
}
}

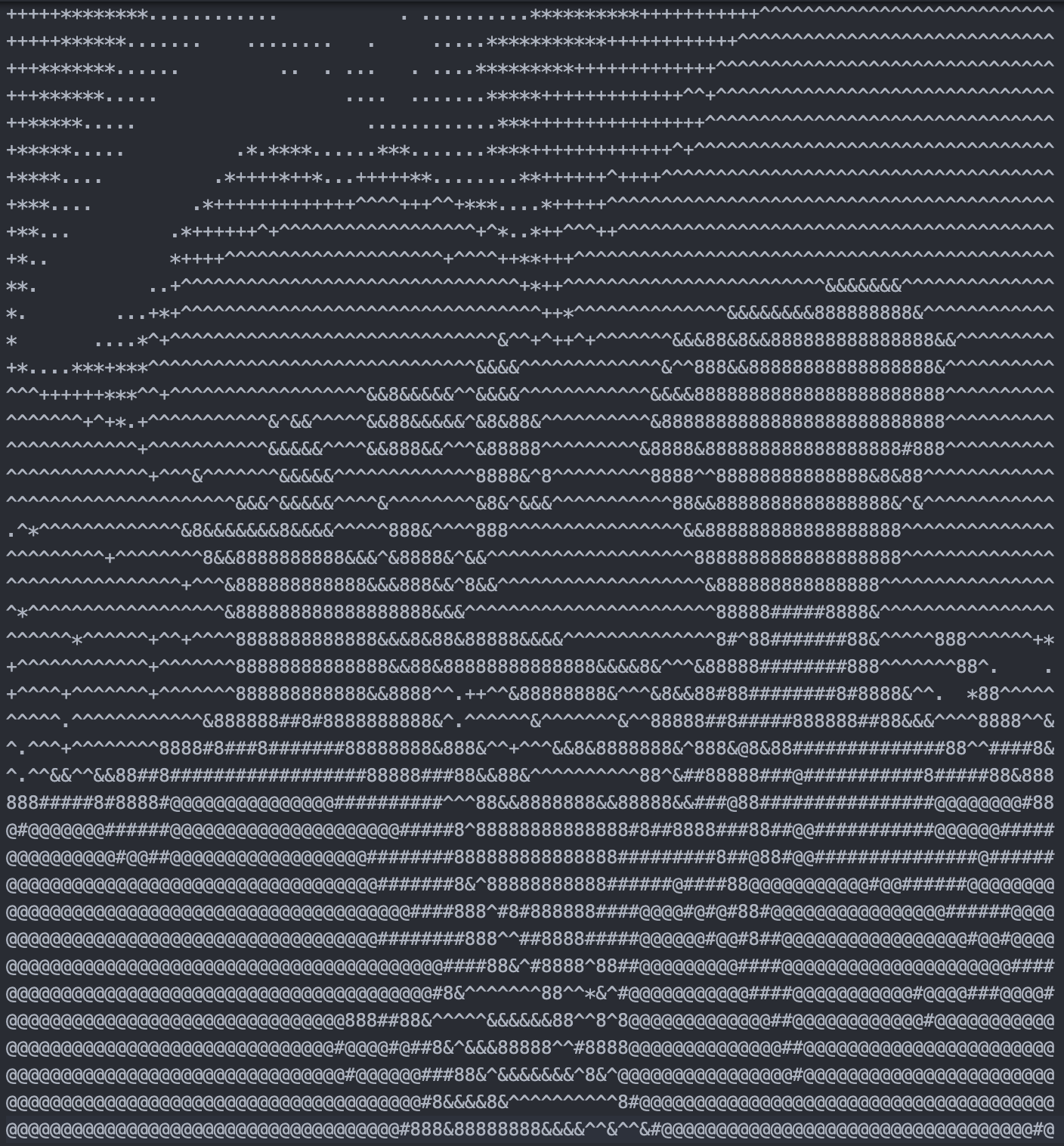

ASCII Hell
Finally, I'm going to convert images to ASCII characters. The problem with the old method was that it stretched the image out too much and didn't look good at all. I found that the best solution would be to take 4 rows and 2 columns of pixels and convert them into a single ASCII character, so that's what I implemented here.
Also, as a side note, I basically just copied the previous code and edited that. No point in reinventing the wheel once you already get what's happening.
Additionally, (I didn't have to, but) I tried to fix the ASCII characters to be more evenly spaced out. I decided to use the link provided and found a chart of 94 characters organized by those that took the most dark space to those that took the least.
Now here's the fun math part. I wanted to get a mostly divisible number but 94 only factors into 47 and 2, so I rounded to 90 and decided to take 15 of those ASCII characters to use. Then, I took every 6th character in the character list to get my values. Next, I derived an equation to get the thresholds. Since the max value of RGB is 255 and the max percentage of coverage is 23.1%, I got t = (1 - 1/0.23) * 255 to find the thresholds. Finally, I compared each character and plugged its respective coverage percent into the equation to get every threshold.
As for the results, they went a bit differently than how I expected. I'm not going to show them here, but they're a lot more detailed than the original ASCII calculator. Unfortunately, I don't think it looks super good with smaller images, so I decided to keep the old conversion.
public class ASCIIConversion extends ImageBlueprint {
public ASCIIConversion(String name, String ext) {
super(name, ext);
this.colorFile = this.outDir + name + "ASCII" + ".txt";
}
public ASCIIConversion(String name) {
super(name);
this.colorFile = this.outDir + name + "ASCII" + ".txt";
}
@Override
protected void conversion() {
// Controls how big chunks are taken for ASCII characters
final int XLENGTH = 1;
final int YLENGTH = 2;
BufferedImage img = null;
PrintWriter asciiPrt = null;
FileWriter asciiWrt = null;
Color col = null;
try {
File file = new File(this.colorFile);
Files.deleteIfExists(file.toPath());
} catch (IOException e) {
System.out.println("Delete File error: " + e);
}
try {
asciiPrt = new PrintWriter(asciiWrt = new FileWriter(this.colorFile, true));
} catch (IOException e) {
System.out.println("ASCII out file create error: " + e);
}
try {
img = ImageIO.read(new File(this.inFile));
} catch (IOException e) {
}
for (int i = 0; i < img.getHeight(); i += 4) {
for (int j = 0; j < img.getWidth(); j += 2) {
// colorSum stores total sum of RGB values, counter keeps track of how many are being counted
// colorSum/counter = average
// average is taken to get ASCII character
double colorSum = 0;
int counter = 0;
for (int k = 0; k < XLENGTH; k++) {
for (int l = 0; l < YLENGTH; l++) {
if (k < img.getWidth() && l < img.getHeight()) {
counter++;
col = new Color(img.getRGB(j + k, i + l));
colorSum += (((col.getRed() * 0.30) + (col.getBlue() * 0.59) + (col
.getGreen() * 0.11)));
}
}
}
double average = colorSum / counter;
try {
asciiPrt.print(asciiChar(average));
asciiPrt.flush();
asciiWrt.flush();
} catch (Exception ex) {
}
}
try {
asciiPrt.println("");
asciiPrt.flush();
asciiWrt.flush();
} catch (Exception ex) {
}
}
}
// conversion table, there may be better out there ie https://www.billmongan.com/Ursinus-CS173-Fall2020/Labs/ASCIIArt
public String asciiChar(double g) {
String str = " ";
// Higher quality, looks better with bigger images
// if (g >= 224.6) {
// str = " ";
// } else if (g >= 186.6) {
// str = "-";
// } else if (g >= 165.5) {
// str = ";";
// } else if (g >= 143) {
// str = "(";
// } else if (g >= 137.5) {
// str = "<";
// } else if (g >= 127.5) {
// str = "L";
// } else if (g >= 123.1) {
// str = "1";
// } else if (g >= 113.1) {
// str = "n";
// } else if (g >= 102) {
// str = "s";
// } else if (g >= 85.4) {
// str = "h";
// } else if (g >= 75.4) {
// str = "4";
// } else if (g >= 69.8) {
// str = "e";
// } else if (g >= 62.1) {
// str = "5";
// } else if (g >= 51) {
// str = "D";
// } else if (g >= 35.5) {
// str = "Q";
// } else if (g >= 17.8) {
// str = "M";
// } else {
// str = "@";
// }
if (g >= 240) {
str = " ";
} else if (g >= 210) {
str = ".";
} else if (g >= 190) {
str = "*";
} else if (g >= 170) {
str = "+";
} else if (g >= 120) {
str = "^";
} else if (g >= 110) {
str = "&";
} else if (g >= 80) {
str = "8";
} else if (g >= 60) {
str = "#";
} else {
str = "@";
}
return str;
}
public static void main(String[] args) {
ASCIIConversion nicandrohan = new ASCIIConversion("nicandrohan", "png");
nicandrohan.conversion();
}
}
